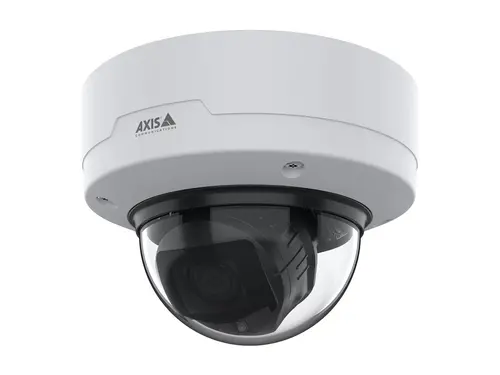

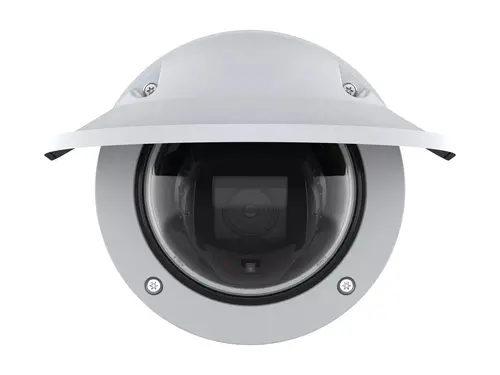

AXIS P3277-LVE Dome Camera

The AXIS P3277-LVE is designed for outdoor surveillance, combining robustness with image quality. With an operational temperature range of 0 °C to 50 °C, this network surveillance camera operates effectively in various weather conditions. It features an optical sensor with a resolution of 5,000,000 pixels and supports a range of video resolutions, including 2560 x 1440 and 1920 x 1200, to provide clear imagery for monitoring purposes.
In addition to imaging capabilities, the camera's vandal- and weatherproof design (IP66 compliant) ensures reliability in challenging environments. It is equipped with infrared technology that enables visibility up to 40 m even in low-light conditions, enhancing performance during night and day. The inclusion of advanced image processing features such as Lightfinder 2.0 technology and Forensic WDR enriches the camera's ability to capture high-quality images regardless of lighting scenarios, making it a suitable choice for comprehensive surveillance needs.

Description
Marketing Description	The AXIS P3277-LVE is designed for outdoor surveillance, combining robustness with image quality. With an operational temperature range of 0 °C to 50 °C, this network surveillance camera operates effectively in various weather conditions. It features an optical sensor with a resolution of 5,000,000 pixels and supports a range of video resolutions, including 2560 x 1440 and 1920 x 1200, to provide clear imagery for monitoring purposes.
General
Device Type	Network surveillance camera
Audio Support	Yes
Form Factor	Dome
Camera Mount Type	Wall mount, ceiling mount
Connectivity Technology	Wired
Width	14.9 cm
Depth	14.9 cm
Height	15.6 cm
Weight	850 g
Localisation	United States, United Kingdom, Korea, Japan, India, Europe, China, Brazil, Australia, Argentina
Camera
Type	Colour - Day&Night - fixed - outdoor - vandal / weatherproof
Max Digital Video Resolution	2560 x 1440
Motion Detection	Yes
Exposure Range	2 sec - 1/30500 sec
Minimum Illumination	0.1 lux - colour - F1.38 - 50 IRE 0.03 lux - B&W - F1.38 - 50 IRE 0 lux - IR
Infrared LEDs	Yes
Infrared Distance	40 m
Digital Video Capture Resolution	2560 x1440, 1920 x 1200, 2592 x 1944
Frame Rate (max)	30 frames per second
RAM	2 GB
Flash Memory	8 GB
Features	IR Corrected lens, remote zoom, remote focus, Forensic WDR, Lightfinder 2.0 technology, deep learning processing unit (DLPU), Zipstream technology, digital PTZ function, Adaptive Bitrate (ABR), Multi-Bitrate (MBR), Variable Bitrate (VBR), video streaming indicator, 180° image rotation, 270° image rotation, 90° image rotation, brightness control, compression, contrast control, Corridor mode, day/night threshold, defogging, distortion correction function, dynamic text, exposure zone, image mirror, image overlay, Privacy Mask Function, saturation control, sharpness control, white balance, simplex audio, Axis device ID, Axis Edge Vault, brute force delay protection, centralised certificate management, digest authentication, HTTPs encryption, IP address filtering, password protection, secure boot, secure keystore, signed firmware, signed video, user access log, VAPIX support, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Pixel Counter Support, human detection, Vehicle Detection, OptimizedIR, memory card encryption, NAS-Ready, up to 7 individually cropped out view areas, -190° / +190° rotation
Image Sensor
Type	5 MP PS RGB CMOS 1/2.8"
Lens Construction
Type	Vari-focal
Focal Length	3 mm - 8.5 mm
Lens Iris	F/1.38-2.58 auto iris (P-Iris)
Min Focus Distance	1 m
Horizontal Field of View (degree)	104 - 34
Vertical Field of View (degree)	76 - 26
Panning
Range (degree)	-190 to +190
Tilting
Range (degree)	-50 to +80
Interfaces
Network Interface	Ethernet 10Base-T/100Base-TX
Network Protocols	IPv4, IPv6, USGv6, ICMP, HTTP, HTTPS, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP/IP, UDP/IP, IGMP, IGMPv2, IGMPv3, DHCP, ARP, SOCKS, SSH, SIP, LLDP, CDP, MQTT, Syslog, Zeroconf
Alarm Inputs Qty	1
Alarm Outputs Qty	1
Expansion / Connectivity
Ports	LAN/power - RJ-45 Digital input/output - terminal block Audio line-in/microphone - 3.5 mm jack
Supported Memory Cards	microSD Card, microSDHC Card, microSDXC Card
Encryption Algorithm	TLS 1.2, TLS 1.3, EAP-TLS
Miscellaneous
Included Accessories	Terminal block connectors, cable gaskets, connector guard, weathershield
TAA Compliant	Yes
Compliant Standards	IEEE 802.1x, PVC-free, BFR-free, CFR free, IEEE 802.3af, EMC, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 B Class A, ICES-3(A)/NMB-3(A), RCM, AS/NZS CISPR 32 Class A, VCCI Class A, CAN/CSA C22.2 No. 62368-1 ThirdEdition, IEC/EN/UL 62368-1, IEC/EN 62471, IS13252, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA250 Type 4X, NEMA TS-2 (2.2.7-2.2.9), NIST SP500-267, JEDEC, ECA, RoHS, IP66
Colour	White, NCS S 1002-B
Power
Power Requirements	PoE Plus Class 3
Power Device	4.7 Watt
Software / System Requirements
Software Included	AXIS Object Analytics, AXIS Video Motion Detection
Manufacturer Warranty
Service & Support	Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	50 °C
Relative Humidity (operating)	10 - 85% RH (condensing)
